General Purpose Mini Joystick Controller, V2

Create your own cockpit for flight and race simulation games! Our controller allows you to connect up to 8 potentiometers for analog levers or wheels, and up to 36 switches or push-buttons. No more messing around with keyboard combinations to control your critical simulator controls...build your cockpit the way YOU want it. Each controller has a unique serial number so you can use multiple devices for even more controls. No special software needed, recognized by Windows as a standard Joystick device.

* 8 Analog Axes (X, Y, Z, Rx, Ry, Rz, Slider, Dial), 32 Digital inputs for buttons or switches, 4 Digital inputs for 8-way Hat controller

* Great for DIY cockpit Builders!

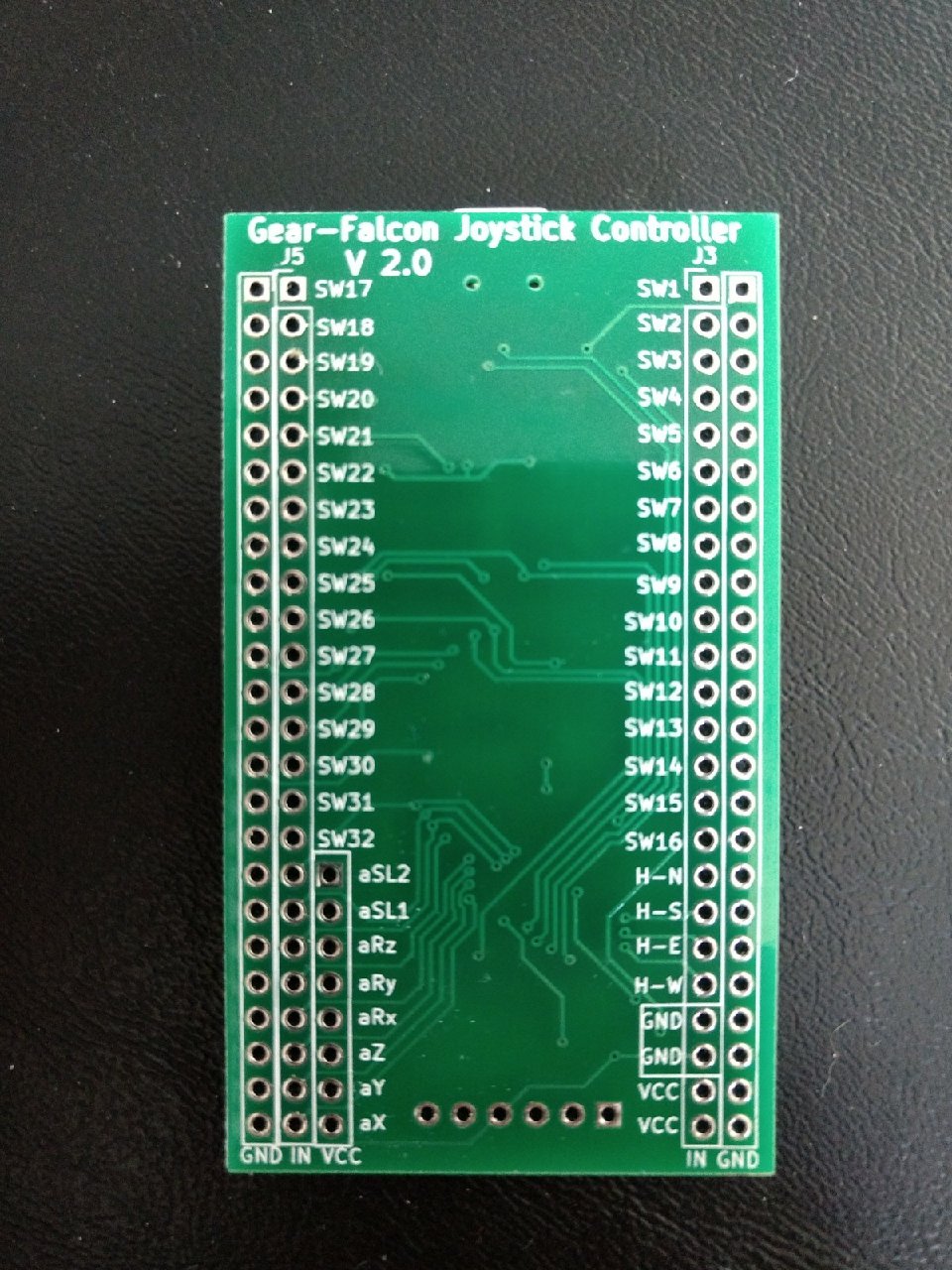

* PC Board with .1" (2.54mm) spacing headers.

* USB Input, USB Type Mini-B - CABLE NOT INCLUDED

* No drivers needed, recognized as a standard joystick controller by the operating system

* Analog ports filtered to reduce "jitter" from less than perfect potentiometers.

* 3-pin analog cables, 2-pin digital cables, and USB Mini-B cables available on this site.

* Analog ports are 10-bit (0-1023) resolution. Digital ports are active-low (inputs grounded to activate)

* Board is 70mm x 40mm.

***Note***

If you are supplying your own cable, make sure it has a USB symbol on it! Mini-B cables without a USB symbol are likely just camera charging cables, and do not carry USB signals.
