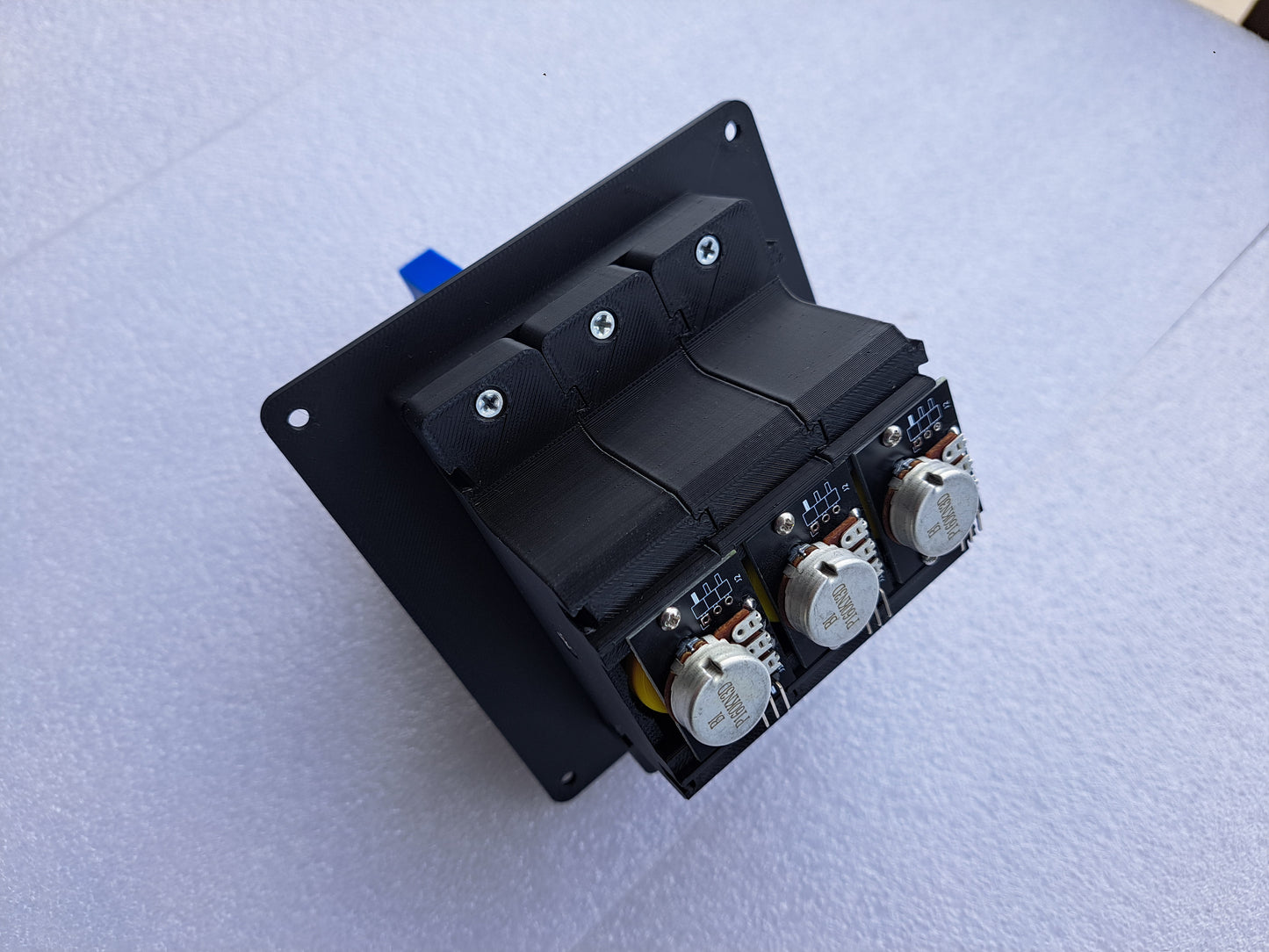

General Aviation TPM Quadrant Lever Panel assembly

Add realism to your Flight Simulator experience!

Our new lever-style TPM controls emulate those found on many General Aviation aircraft. We've ganged 3 of our V3 levers together with a bezel, ready for you to insert into your instrument panel.

The bezel comes with screws so you can easily mount it, and the levers use a high-quality, long-life potentiometer, complete with 2' 3-wire cables so you can attach to one of our joystick controllers, or supply your own.

Lever spacing is 1" (25.4mm).

3-D printed of rugged PLA and ABS plastic, the quadrant levers have 90 degrees of travel, and are geared to use the full 280 degree range of the potentiometer. Our new magnetic brake ensures that the lever maintains its setting.

The flat bezel version quadrant comes with 10mm levers, and the rounded bezel version uses 40mm levers.

Examples of use are, Throttle, Prop Pitch, and Mixture.

Bezel is 116mm wide and 124mm long.

Quadrant body is 76mm wide x 102 long.

You will need 76mm of clearance under the bottom of the bezel in your instrument panel.

No soldering required!
Comes with 3-pin headers for easy connection to the joystick controller of your choice.

Joystick controller board is not included.
