Gear-Falcon

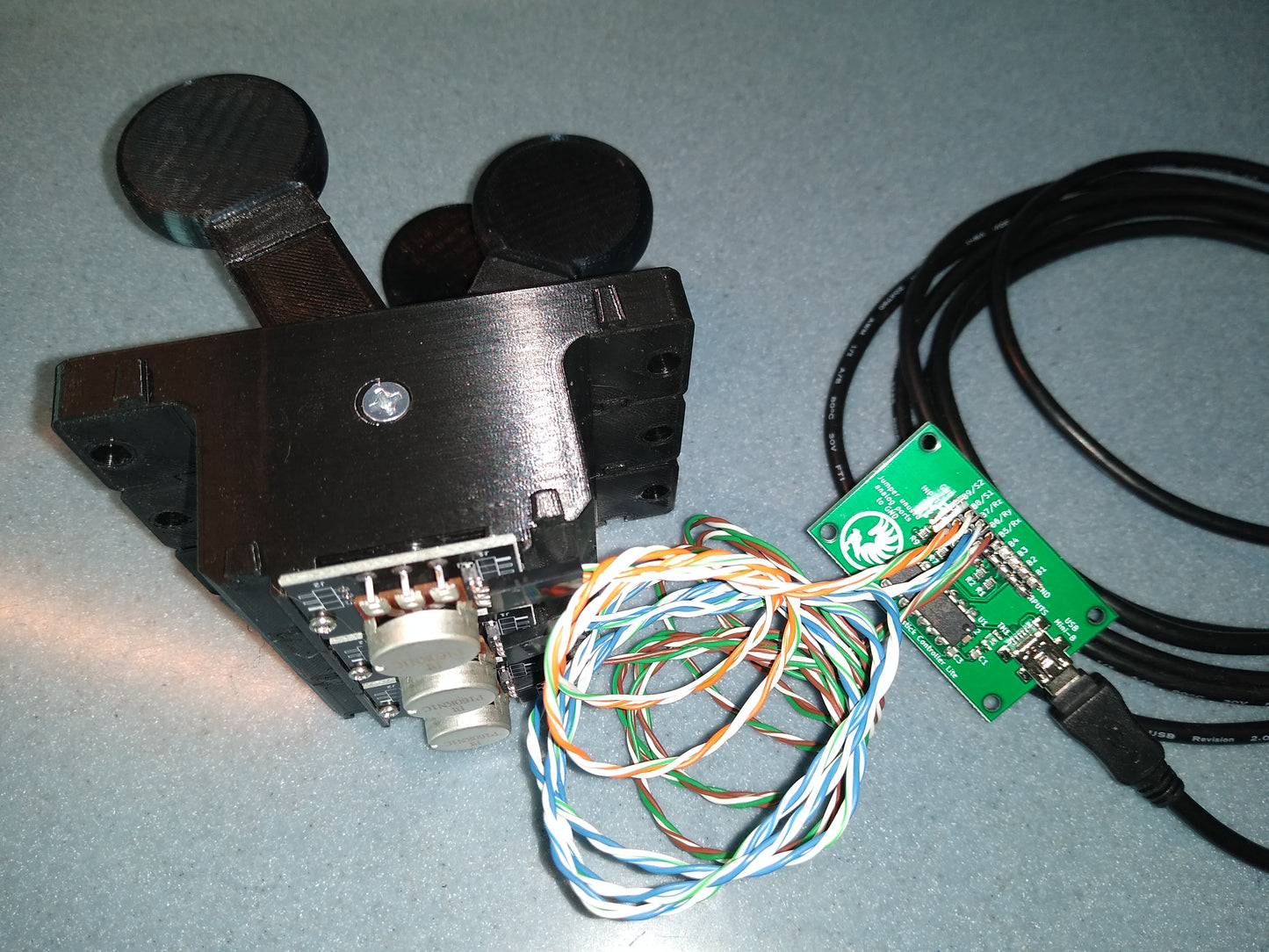

Gear-Falcon V3 Quadrant - Updated...now includes 2' 3-wire cable and mounting screws.

Gear-Falcon V3 Quadrant - Updated...now includes 2' 3-wire cable and mounting screws.

$20.00 USD
$20.00 USD
Sale Sold out
Shipping calculated at checkout.

Add realism to your Flight Simulator experience!

Add realism to your Flight Simulator experience!

Finally, the ultimate in quadrant controls. We've refined our design to make it easy for you to incorporate into your cockpit design. The axle is made of aluminum for smooth operation, and we've changed our adjustable brake to a permanent one using super-strong magnets. The bracket is now one piece, and has dovetail slots and extrusions so you can easily join two or more together to meet your cockpit needs. The potentiometer is on the bottom to facilitate assembly and ganging, and connection is now made via a 3-pin right angle pin header, to make it easier to connect to the joystick controller of your choice. The spacing of multiple levers is 1".

3-D printed of rugged PLA plastic, this quadrant lever features a high quality, long-life potentiometer. The lever has 90 degrees of travel, and is geared to use the full 280 degree range of the potentiometer. Our new magnetic brake ensures that the lever maintains its setting. Lever is wider and sturdier than the V1 model, so bezels made for the V1 quadrant will not fit the V3.

Multiple quadrants can be ganged together by simply sliding on additional quadrants via the dovetail joints.

The V3 quadrant comes with a 10mm lever and a black knob.
Longer levers and different color knobs are available, sold separately.

The quadrant is sold bare, without a bezel, so it can mounted from the underside of your control panel. Flat or rounded bezels are available separately.

Now includes a screws for mounting to your control panel, and a 2 foot long 3-wire cable for connecting to one of our General Purpose joystick controllers.

Examples of use are, Throttle, Prop Pitch, Mixture, Radiator, Flaps, Landing Gear, Dive Brakes... any control where your sim allows the use of an analog control.

Mounting holes are spaced at 94mm.
Quadrant body is 104mm long x 45mm high x 28mm wide

No soldering required!
Comes with a 3-pin header for easy connection.

Joystick controller board is not included.
Bezel is not included, sold separately.
Different length cables sold separately.
Different color/style knobs sold separately.
Different length levers sold separately.

Materials

Shipping & Returns

Dimensions

Care Instructions

View full details

Customer Reviews

Based on 23 reviews
96%
(22)
4%
(1)
0%
(0)
0%
(0)
0%
(0)
100.0
M
Matt Lester
Meet my needs perfectly

Perfect components for my project. Well made and very affordable. Service was spot on and I couldn't be happier. The only thing better would be if they shipped to Canada :-) I'm sure glad guys like you are servicing the DIY market. Keep up the good work.

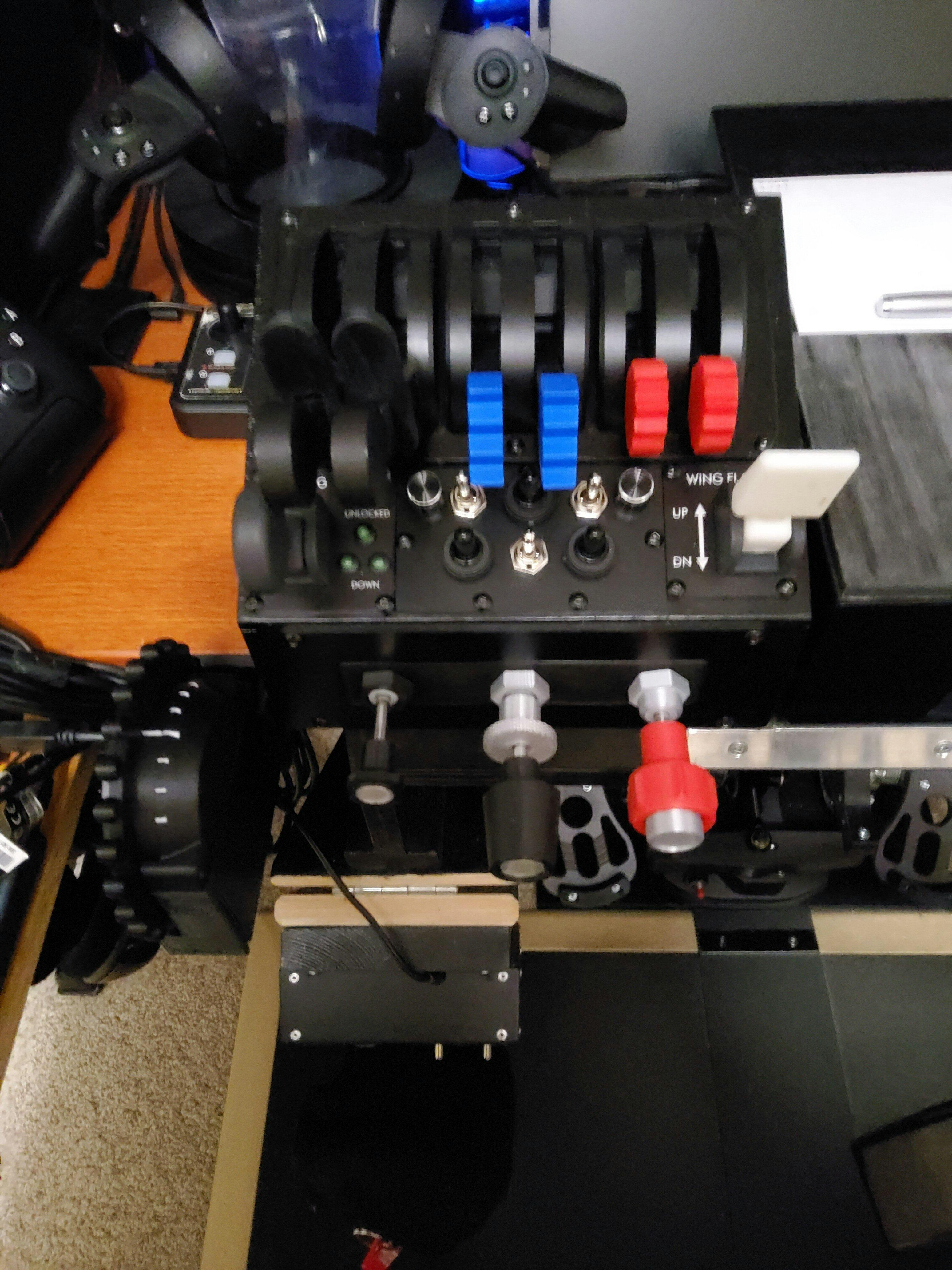

User picture
G
Gary Ahlgren
Modified to control Trolling Motor

I modified a servo tester and connected the Gear-Falcon lever control to it to work with the ESC conversion I used to control the Trolling Motor on my fishing Kayak. Works great with smooth input in both forward and reverse with a easy to find neutral gate.

M
Mike Hoppner
Are you Kidding Me--Sweet!

$20 bucks? You have to be kidding me? That’s like what…3 Starbucks coffees gone in a day? What a sweet little addition for the scratch-built cockpit simmer that doesn’t own a 3D printer! And the $5 extensions levers to make it simple to accurately represent a T210M Cowl Flap handle (my use)--this thing is a steal! A couple of these should be in every flight simmers Christmas stocking! Literally plug, calibrate, and open those cowl flaps baby! Works great—excellent, excellent, excellent!

D
David Croser-Drake
Review

They look really good on my TARDIS console

S
Sylvain
Review

It s good. A solder gave up, but really not a big deal at this price point. Fixed in 1 minute. Great addition to my Il2 cockpit.
